Bench-2 Computer Drawings: RS-232 Signal Routing

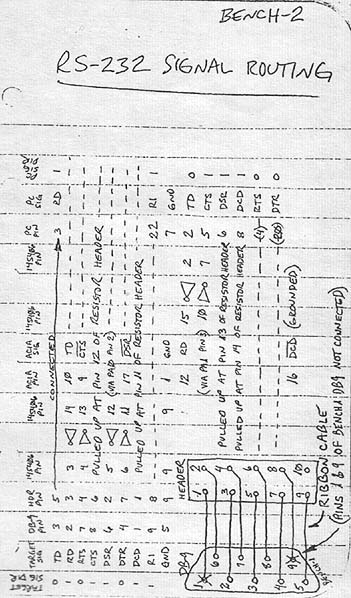

RS-232 Signal Routing

Click the drawing to view it larger.

Next Drawing: Reset Circuit →
