Bench-1 Computer Drawings: ACIA2 Clock Select

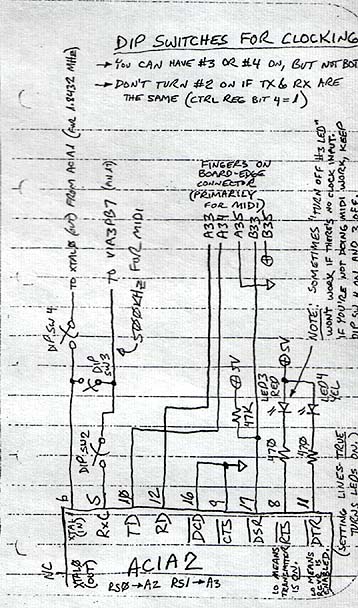

ACIA2 Clock Select

Click the drawing to view it larger.
