Bench-1 Computer Drawings: PIC Programmer

PIC Programmer

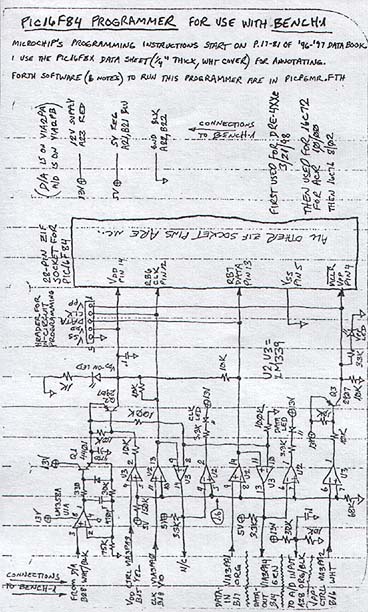

Click the drawing to view it larger.

Next Drawing: Printer Interface Pinout →
