Bench-1 Computer Drawings: A/D Converter

A/D Converter

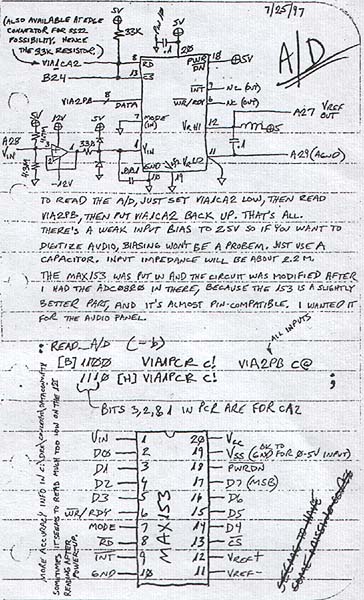

Click the drawing to view it larger.

Next Drawing: D/A Converter →
