Bench-1 Computer Drawings: ACIA2 MIDI Cable

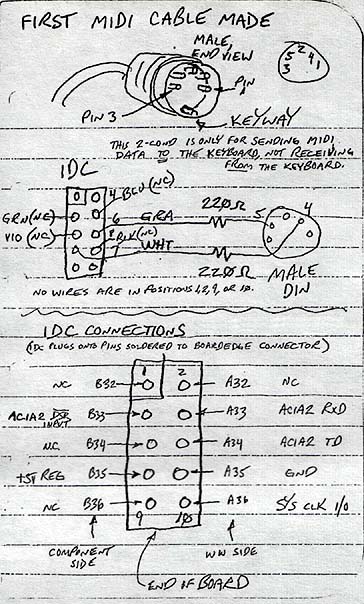

ACIA2 MIDI Cable

Click the drawing to view it larger.

Next Drawing: ACIA3 Tape Modem Interface →
