CS/A65 IEC

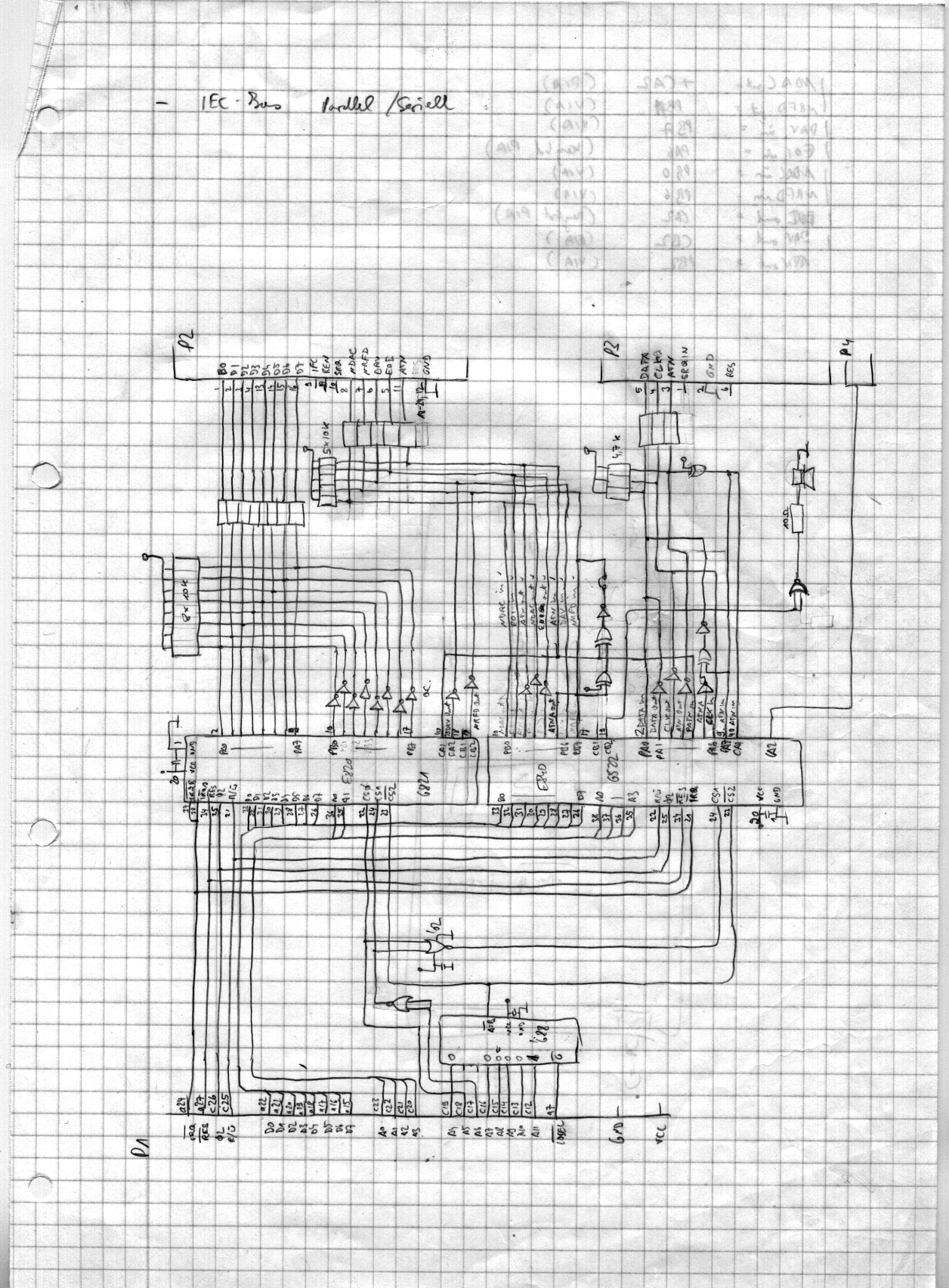

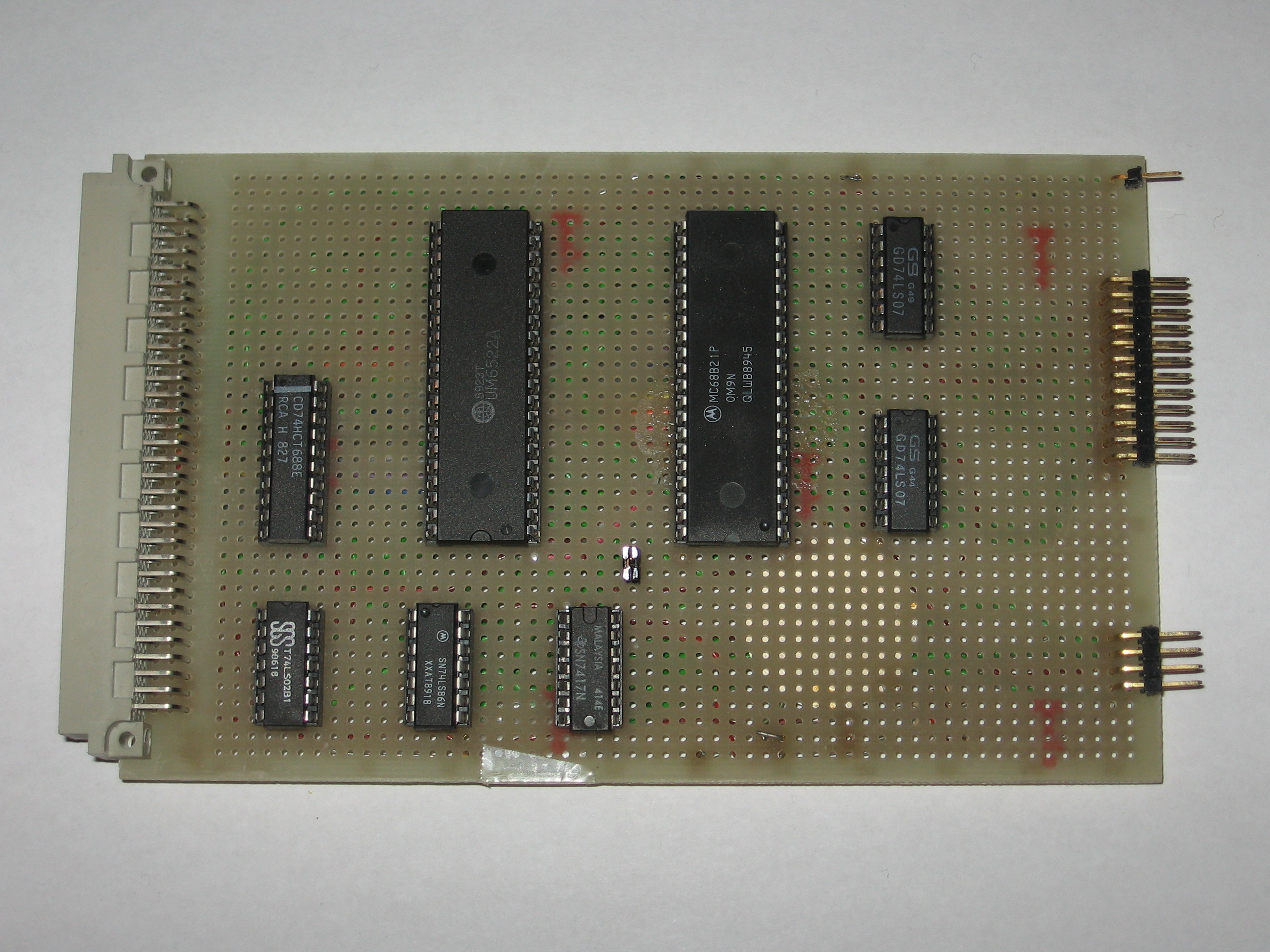

This board implements an IEEE488 interface, as well as a Commodore serial IEC bus interface, as used in the VIC20 and C64 (and others).


News:

Top
  •
    2006-11-01 Board is deprecated. Use PETIO board instead.
  •
    2006-11-01 Added driver code.


Driver

Top

OS/A65 V2 IEEE488 driver

This is the parallel IEEE488 and serial IEC driver code for the fsiec OS/A65 filesystem process. It implements the hardware access with the following methods:
  • IECINIT - Initialize the hardware
The following methods are used when the filesystem runs as a device (like CBM2031). This part is enclosed with the conditional variable NOLOOP. This part also handles a directory hierarchy with the CD command. This part is only available for the parallel IEEE488 interface, not the serial IEC bus.
  • RETLOOP - clear the bus
  • INLOOP - detect ATN activity and react as a device
  • talkloop - called from INLOOP to send data (TALK)
  • listenloop - called from INLOOP to receive data (LISTEN)
  • sendcmd - interpret the command channel
  • open - open a file
The following methods are used when the filesystem is running as bus master (similar to PET or C64). This part is enclosed with the preprocessor conditional variable NOFS.
  • iec0out - send a byte with ATN set
  • iecout - send a byte
  • sectalk - send a secondary talk
  • seclisten - send a secondary listen
  • IECIN - receive a byte
  • UNLISTEN - send unlisten
  • UNTALK - send untalk
  • getif - get interface using PSEM() and/or CTRLNMI()
  • freif - release interface using VSEM() and/or CTRLNMI()
Unfortunately, due to its age, the code is a mess, but works in GeckOS/A65.

 piec_csa_master.a65(parallel IEEE488 Driver code, excerpt to use as bus master)

 piec_csa_drive.a65(parallel IEEE488 Driver code, excerpt to use as IEEE488 drive)

 siec_csa.a65(serial IEC Driver code (bus master only))

OS/A65 Beeper driver

This driver handles the piezo beeper included in this board. It provides the three methods
  • inibell - initialize the bell
  • trigbell - trigger the bell sound
  • bellirq - interrupt code that modulates the bell ring until the ring is finished. Should be called with 50Hz or the count values must be modified.

 con_csa.a65(excerpt from console driver)

 via6522.i65(VIA register definitions)


Board revisions

Top

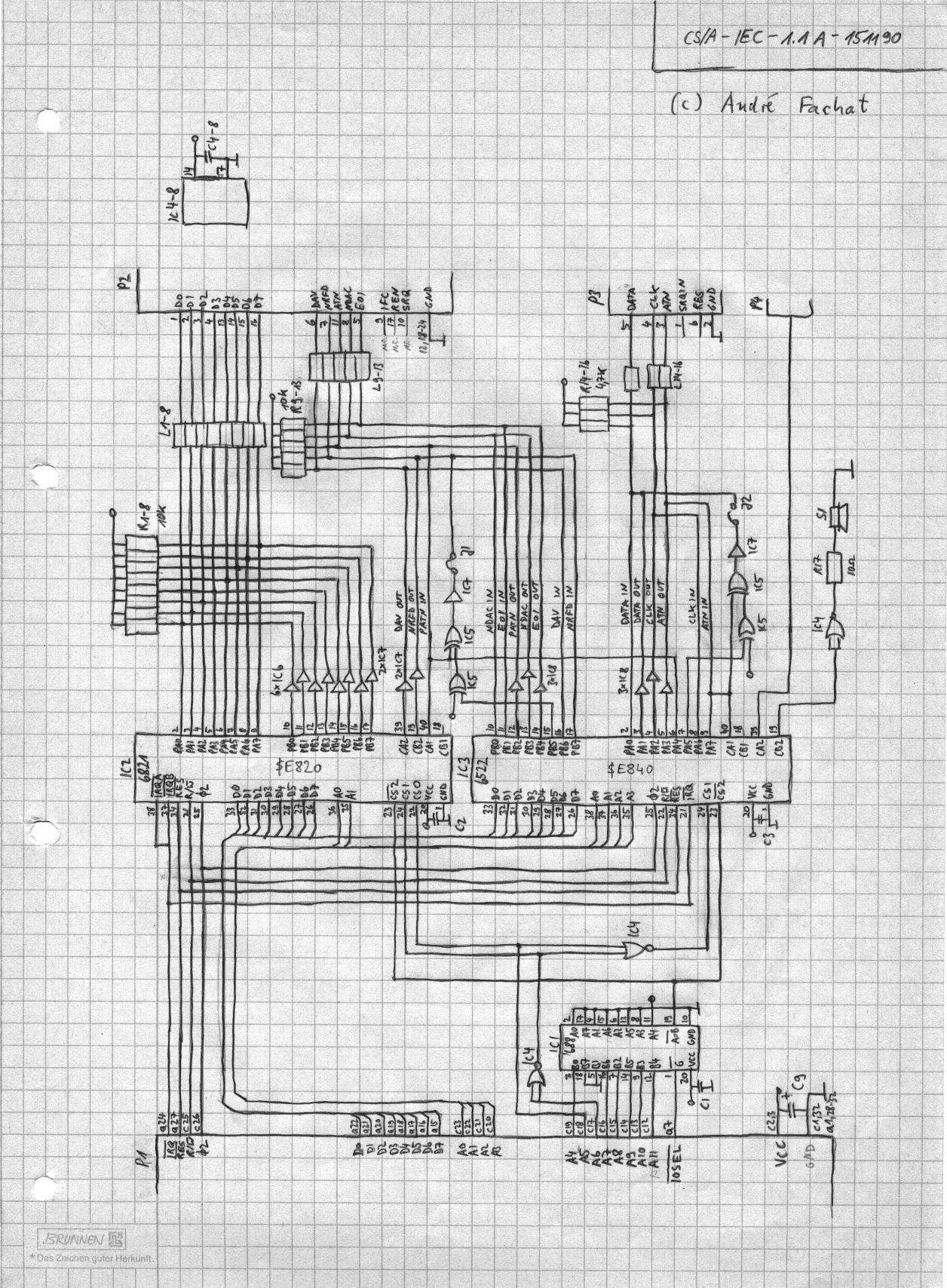

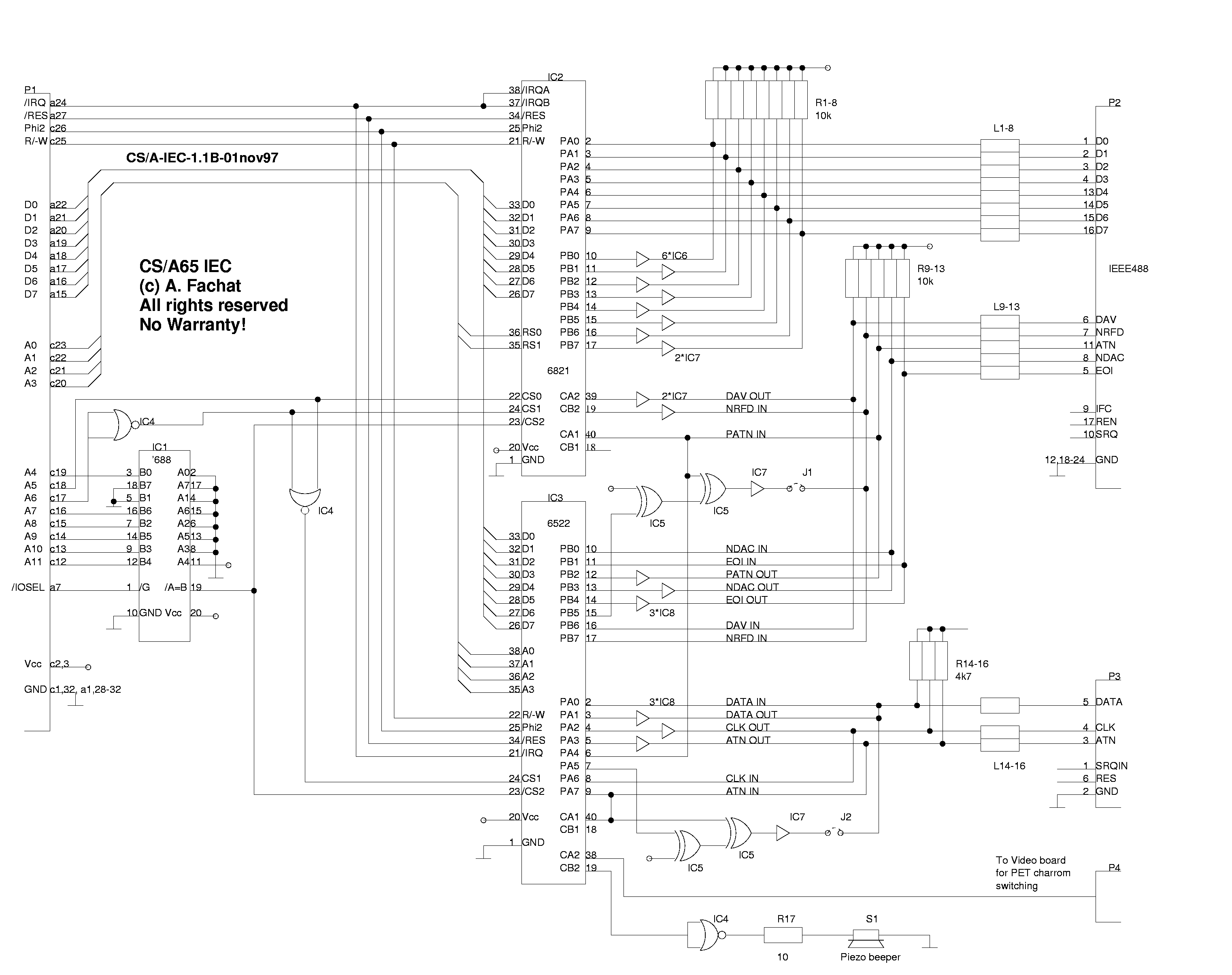

Version: 1.1B

Status: ok

Notes


 This board is only partially compatible with the Commodore PET IEEE488 interface, although it uses the same I/O address. It adds, however, the ability to be used as a device (for both the IEEE488 and the IEC bus).

 This board is deprecated. Please use the PETIO board instead.

Files


 csaiecdesc.txt

 csaiecparts.txt

 csaiec.fig


 csaiec.ps.gz


Last modified: 2006-10-13.
