CS/A65 VIA prototyping board
This board is a simple prototyping board that you can use to prototype circuits with the VIA. Note that it's untested.
- Board Revisions
- 1.0A (untested prototype)
Version: 1.0A
Status: untested prototype
Notes
| This is simply a CS/A board with a VIA and address decoding for it. Empty places for 14/16 pin standard logic ICs (TTL with power on 7/14 resp. 8/16) are included for convenience. | |
| The board is untested. |
Files
| csa_viaproto-v1.0a.sch | |
| csa_viaproto_v1.0a-sch.png | |
| csa_viaproto-v1.0a.brd | |

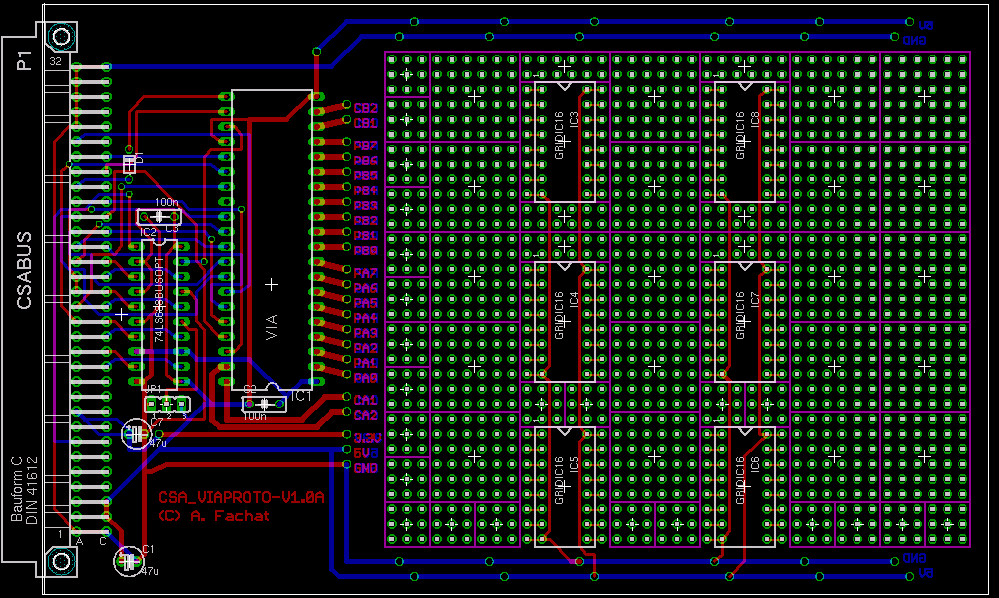

| csa_viaproto_v1.0a-brd.png |
